16 Channel Wrist Array for 7 T

16 Channel Wrist Array for 7 T

Description

  • array for high resolution wrist imaging
  • transmit quadrature birdcage
  • split receive array and separate transmit coil
  • 16 receive channels, supporting parallel imaging
  • B0‑field strength 7T

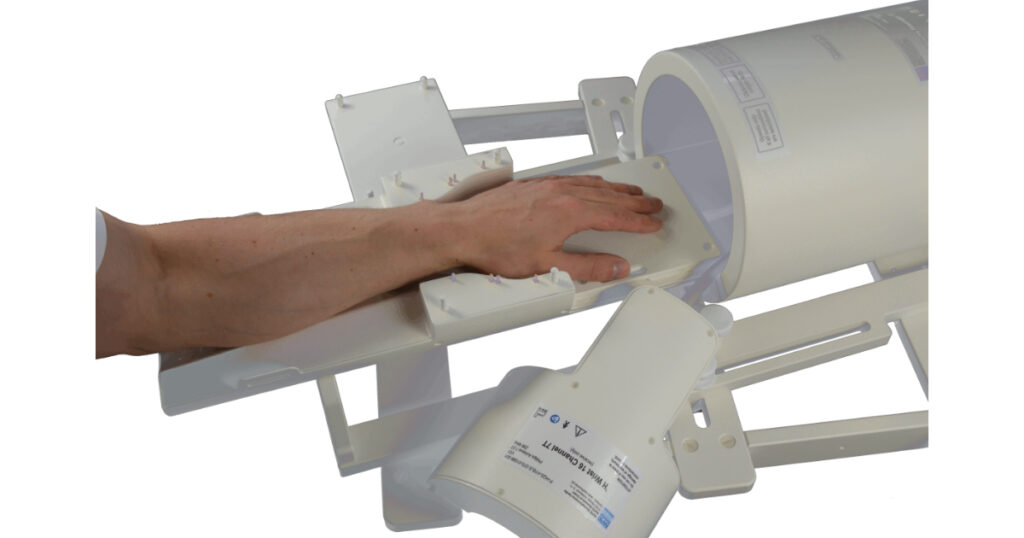

  • head rest for „Superman“-positioning
  • slide frame supports flexible positioning for left or right wrist
  • housing dimensions: volume resonator: approx. ID 17 cm, OD 21 cm, length 29 cm
  • Rx Array: approx. length 8 cm
  • shape follows hand anatomy
  • approx. weight: 9 kg
  • individually adaptable to different MR systems
  • no medical device

For a quotation on this coil please contact us.

Caution! Investigational device limited by Federal (or United States) Law to investigational use only.


Datasheet

Download information about 16 Channel Wrist Array for 7 T as PDF .

Publications

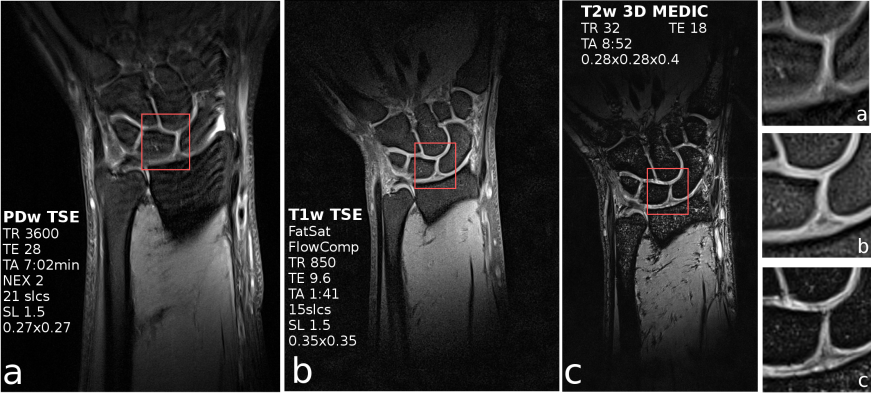

A.B. Schmid et al.: Feasibility of Diffusion Tensor and Morphologic Imaging of Peripheral Nerves at Ultra-High Field Strength.
Investigative Radiology, doi: 10.1097/RLI.0000000000000492 (2018)
with RAPID Biomedical transmit volume coil V-HQS-070-01391-003 and the 16-channel receive array P-H16LE-070-01392-003
