Mouse Head and Heart Arrays

Mouse Head and Heart Arrays


  • surface coil array for 1H imaging of small animals
  • 2- or 4-*channel arrays for mouse brain or cardiac
  • receive only
  • actively decoupled
  • fixed tuned
  • anatomical shape for optimized receive homogeneity and SNR
  • supporting parallel imaging experiments

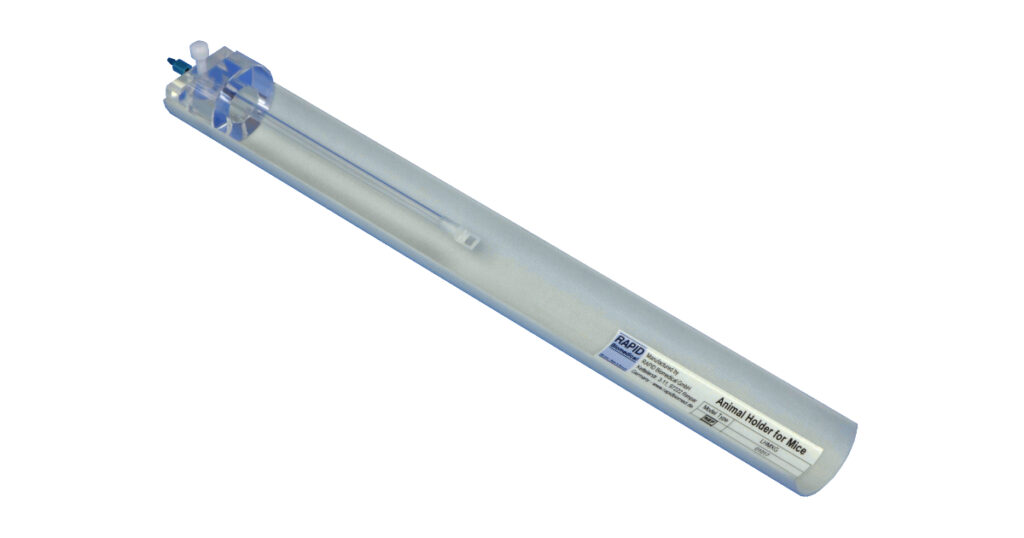

  • mechanically adapted to RAPID mouse holder LHRXGS-00562
  • measurements down to 50 mm x 16 mm
  • coil and animal holder fit into volume transmit coils with an inner diameter of 72 mm or more
  • pre-requisites:
    – 2 resp. 4 channel receiver system
    – PIN diode driver
    – actively decoupled volume transmit coil

Individually adaptable to the established systems like Bruker, Agilent, Varian and clinical scanners at any field strength.
Please contact us for availability on your NMR system and for customized options.


M. Zhu, Ch. Akimana, E. Wang, Ch.K. Ng: 1H-MRS Quantitation of Age-Dependent Taurine Changes in Mouse Brain. Mol Imaging Biol (2019) DOI: 10.1007/s11307-019-01333-6
with RAPID Biomedical 4 channel mouse head coil P-H04LE-094-01136

K. Hammouda et al.: A new framework for performing cardiac Strain Analysis from cine MRi imaging in Mice. Scientific Reports (2020) DOI: 10.1038/s41598-020-64206-x
with RAPID Biomedical 4 channel mouse head coil P-H04LE-094-01136

L. Mignion et al.: Metabolic Imaging Using Hyperpolarized Pyruvate–Lactate Exchange Assesses Response or Resistance to the EGFR Inhibitor Cetuximab in Patient-Derived HNSCC Xenografts.
Clinical Cancer Research, (December 2019) DOI: 10.1158/1078-0432.CCR-19-1369
with RAPID Biomedical 13C/1H dual tuned mouse head coil O-XL-HL-117-01679

C. Correa-Paz et al.: In vivo ultrasound-activated delivery of recombinant tissue plasminogen activator from the cavity of sub-micrometric capsules.
Journal of Controlled Release 308 (2019) 162-171
with RAPID Biomedical 2 channel mouse head coil P-H02LE-094-00902

C. Corbet et al.: Interruption of lactate uptake by inhibiting mitochondrial pyruvate transport unravels direct antitumor and radiosensitizing effects.
nature communications, doi: 10.1038/s41467-018-03525-0 (2018)
with RAPID Biomedical 13C/1H dual tuned mouse head coil O-XL-HL-117-01679

B.M.A. Delattre et al.: High Time-Resolved Cardiac Functional Imaging Using Temporal Regularization for Small Animal on a Clinical 3T Scanner
with RAPID Biomedical 2-channel mouse heart surface coil P-H02LE-030-00745
