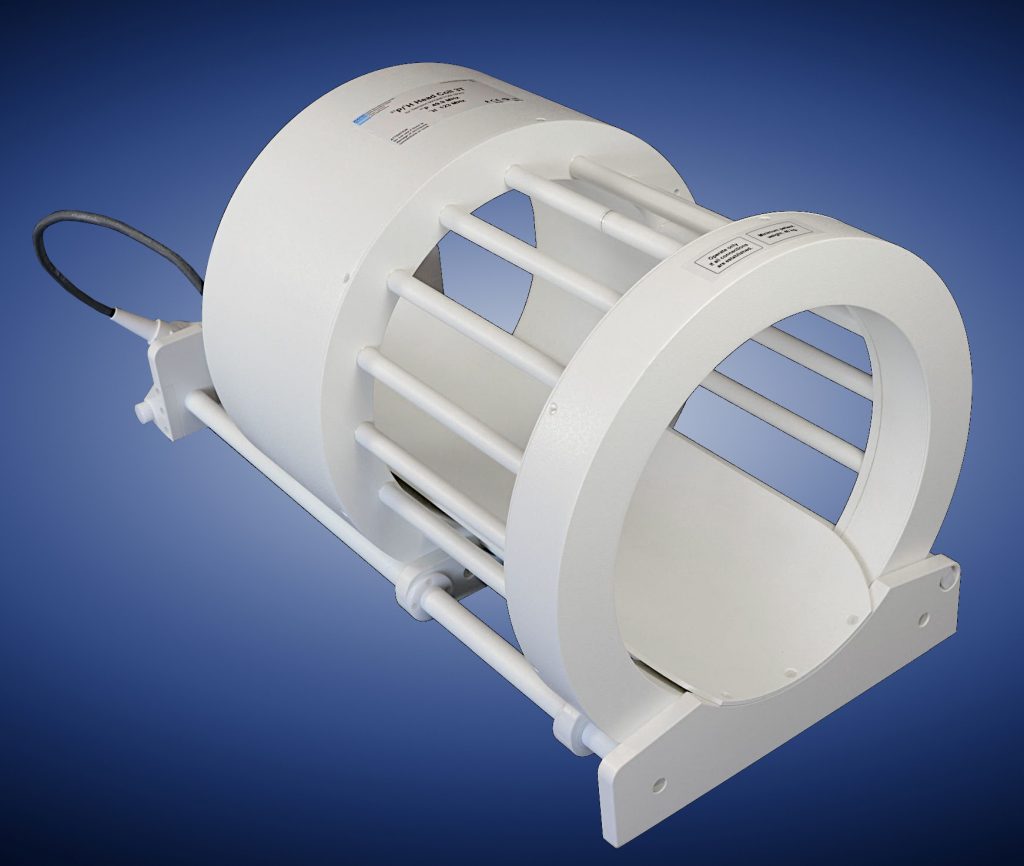

Dual Tuned Quadrature Head Coil for 1.5 T and 3 T

Dual Tuned Quadrature Head Coil for 1.5 T and 3 T

Description

  • volume coils for studies of the human head
  • both channels equipped with quadrature polarization
  • capable of performing 1H decoupled experiments when applicable
  • available for 31P, 23Na and 13C  combined with 1H (other non-proton nuclei on demand)
  • B0-field strength 3 T
  • housing dimensions: inner diameter 26.5 cm, housing length 43 cm
  • approx. weight: 10 kg
  • a pediatric version with adapted dimensions is also available
  • individually adaptable to different MR systems

For a quotation on this coil please contact us.

Regulatory requirements for medical products will vary by country and MR system.

Please, contact us at info@rapidbiomed.de or info@rapidmri.com (USA, Canada, and South America) to determine approval status for products mentioned on this product page.

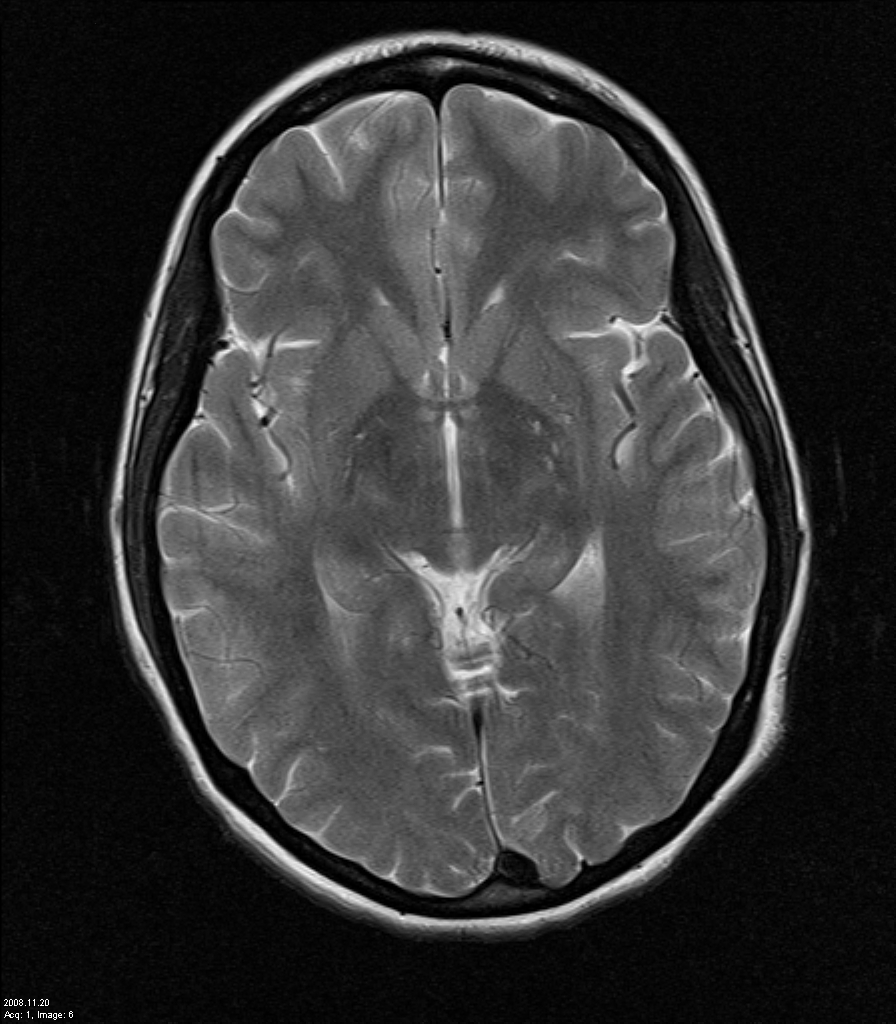

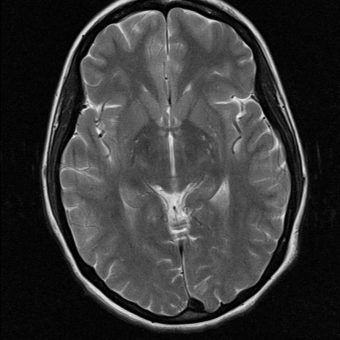

Image Courtesy: C. Boesch, University of Bern, Switzerland

Datasheet

Download information about Dual Tuned Quadrature Head Coil for 1.5 T and 3 T as PDF .

Publications

J. Grist et al.: Imaging intralesional heterogeneity of sodium concentration in multiple sclerosis: Initial evidence from 23Na-MRI.
Journal of Neurological Sciences, doi: 10.1016/j.jns.2018.01.027
with RAPID Biomedical 23Na/1H dual tuned head coil V-XQ-HQ-030-01635-001

J. Necus et al.: White matter microstructural properties in bipolar disorder and its relationship to the spatial distribution of lithium in the brain.
bioRxiv preprint first posted online Jun. 13, 2018; doi: 10.1101/346528 (2018)
with RAPID Biomedical 7Li/1H dual tuned head coil V-XQ-HQ-030-01082-002

J.T. Grist et al.: Imaging intralesional heterogeneity of sodium concentration in multiple sclerosis: Initial evidence from 23NA-MRI.
Journal of the Neurological Sciences, doi: 10.1016/j.jns.20180.01.027 (2018)
with RAPID Biomedical 23Na/1H dual tuned head coil V-XQ-HQ-030-01635-001

J.T. Grist et al.: Imaging the healthy human brain with hyperpolarized [1-13C] pyruvate.
ISMRM 2018, Paris, Poster # 0277
with RAPID Biomedical 13C/1H dual tuned head coil V-XQ-HQ-030-01489-001

F.E. Smith et al.: 3D 7Li magnetic resonance imaging of brain lithium distribution in bipolar disorder.
Molecular Psychiatry, doi:10.1038/s41380-018-0016-6
with RAPID Biomedical 7Li/1H dual tuned head coil V-XQ-HQ-030-01082-002

K. Rink, et al.: Nuclear-Overhauser-enhanced MR imaging of 31P-containing metabolites: Multipoint-Dixon vs. frequency-selective excitation.
Magn Reson Imaging (2015). doi: 10.1016/j.mri.2015.07.017
with RAPID Biomedical 31P/1H dual tuned head coils # V-XQ-HQ-070-01500-001  (@ 7 T ) and V-XQ-HQ-030-00633-009 (@ 3 T)

P. Parasoglou, D. Xia, G. Chang, R.R. Regatte: Three-dimensional Saturation Transfer 31P-MRI inMuscles of the Lower Leg at 3.0 T.
SCIENTIFIC REPORTS, Sci. Rep. 4, 5219; doi: 10.1038/srep05219 (2014)
with RAPID Biomedical 31P/1H dual tuned head coil # V-XQ-HQ-030-00961-001

M.C.G. Otaduy et al.: 7LI-MRS Shows A Higher Lithium Brain Absorption in Remission of Bipolar Disorder.
ISMRM Milano, poster #1962 (2014)
with RAPID Biomedical 7Li/1H dual tuned head coil # V-XQ-HQ-030-01082-001

F.G. Zöllner et al.: Quantitative sodium MRI of kidney.
NMR in Biomedicine, doi: 10.1002/nbm 3274 (2015)
with RAPID Biomedical 23Na/1H dual tuned head coil # V-XQ-HQ-030-00707-001

F. Zaccagna et al.: 23Na-MRI in glioblastoma as a tool of assessing tumour microenvironment and heterogeneity: initial results.
Young researchers’ futures meeting; Royal Academy of Engineering – Panel for Biomedical Engineering, London, UK; Poster and Oral Presentation (7-9 Sept 2016) and
Wolfson Brain Imaging Centre 20th anniversary celebration;
CRUK Cambridge Institute, Cambridge, U.K., Poster (24th October 2016) and
ISMRM Italian Chapter, Oral Presentation Abstract number C30 (4-5 February 2016) and
Cambridge Cancer Centre Annual Symposium 2016; CRUK Cambridge Institute; Cambridge, selected as “best poster in translational cancer research” (6th June 2016)
all with RAPID Biomedical 23Na/1H dual tuned head coil # V-XQ-HQ-030-01635-001

J. Lommen, S. Konstandin, P. Krämer, L.R. Schad: Evaluation of Radio-Frequency Field Mapping Methods for Quantitative Sodium MRI at 3 Tesla.
In Proceedings ISMRM 2014 Mailand,  no 1901 (2014) and

J. Lommen, S. Konstandin, P. Krämer, L.R. Schad: Enhancing the quantification of tissue sodium content by MRI: time-efficient sodium B1 mapping at clinical field strengths.
NMR in Biomedicine, 29, 129-136 (2016) and

J. Lommen, S. Konstandin, L.R. Schad: Simultaneous B1 Mapping and Tissue Sodium Content Quantification by MRI at 3 Tesla.
In Proceedings ISMRM 2015 Toronto, no. 2020 (2015)
all with RAPID Biomedical 23Na/1H dual tuned head coil # V-XQ-HQ-030-00707-001
